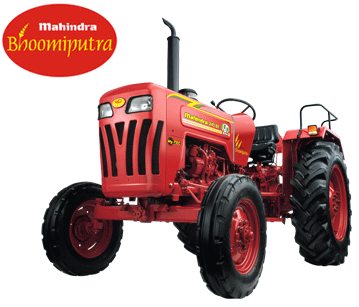

Bhoomiputra 245 DI



ENGINE SPECIFICATIONS>

ModelMM 1797 B
HP26 hp Category
TypeWater cooled four stroke
No. of CylindersTwo
Bore and Stroke (mm)102 / 110
Displacement1797 cc
Rated Engine Speed2000
Max Torque100 Nm @ 1200 to 1400 rpm
Air CleanerOil bath type with cyclonic pre cleaner
Cooling SystemWater cooling
CLUTCHTypeDry friction plate
Size11"



TRANSMISSION SPECIFICATIONS>

GEAR BOX SPECIFICATION
Type
Sliding mesh.
No of speeds
8 Forward / 2 Reverse
Speed Range
Forward
2.53 – 28.81
Reverse
3.28 – 11.38
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size6.5"
 Mechanical, Dry disc brakes.
 Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity1000 kgs
3 Point LinkageCat II
Position Control & Draft ControlAutomatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery75 AH
Starter Motor12 V, Self starter (Solenoid switch operated)
Alternator12 V, In built Regulator.
Horn12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front6.00-16, 8PR
Rear12.4- 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length3065
Overall Width1720
Overall Height2180
Wheel Base1920
Min.ground Clearance380
Standard Tractor Weight (kg)1740
Turning Radius (m)3.3
CAPACITIES SPECIFICATION
Fuel tank45 lit
Engine sump6 lit
Transmission20 lit
Hydraulic12.25 lit
SPECIAL FEATURES
Removable front weights
Removable rear wheel weights
Sliding seat
7-Pin Trailer light socket
