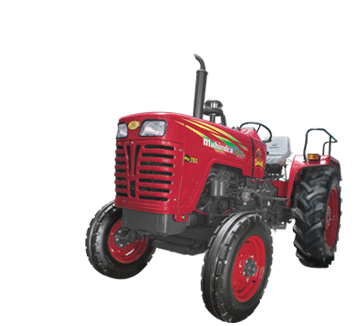

Sarpanch 265 DI



  • ENGINE SPECIFICATION
Model MDI 1785
HP 30 hp Category
Type Water cooled four stroke, Direct injection diesel engine.
No. of Cylinders Three
Bore and Stroke (mm) 88.9 / 101.6
Displacement 1892 cc
Rated Engine Speed 2300
Max Torque 100 Nm @ 1200 to 1600 rpm
Air Cleaner Oil bath type with cyclonic pre cleaner
Cooling System Water cooled
CLUTCH Type Oil bath type with cyclonic precleaner
Size 11"
  • TRANSMISSION SPECIFICATION
GEAR BOX SPECIFICATION
Type Sliding mesh gear.
No of speeds 8 Forward / 2 Reverse
Speed Range Forward 2.76 –29.25
Reverse 4.19 – 12.20
DIFFERENTIAL LOCK SPECIFICATION
Dog clutch type
POWER TAKE OFF SPECIFICATION
Independent, 6 Splines, Hand operated
Selector lever for 540 rpm.
BRAKE SPECIFICATION
Size 6.5"
  Mechanical, Dry disc brakes.
  Parking brake for additional safety.
STEERING
Mechanical, Re-circulating ball type
HYDRAULICS SPECIFICATION
Lifting capacity 1000 kgs
3 Point Linkage Cat II
Position Control & Draft Control Automatic depth and Draft control
ELECTRICALS SPECIFICATION
Battery 75 AH
Starter Motor 12 V, Self starter (Solenoid switch operated)
Alternator 12 V, In built Regulator.
Horn 12 V DC
INSTRUMENTATION SPECIFICATION
Hour Meter, Oil guage, temperature guage, RPM Meter, indicator Switch for high beam.
TYRE SPECIFICATION
Front 6.00-16, 8PR
Rear 12.4- 28, 12 PR
DIMENSIONS SPECIFICATION (in mm)
Overall Length 3200
Overall Width 1680
Overall Height At top of silencer :- 2195
Wheel Base 1836
Min.ground Clearance 350
Standard Tractor Weight (kg) 1820
Turning Radius (m) 3.6
CAPACITIES SPECIFICATION
Fuel tank 55 lit
Engine sump 6 lit
Transmission 20 lit
Hydraulic 11.5 lit
SPECIAL FEATURES
Removable front weights
Removable rear wheel weights
Sliding seat
7-Pin Trailer light socket
